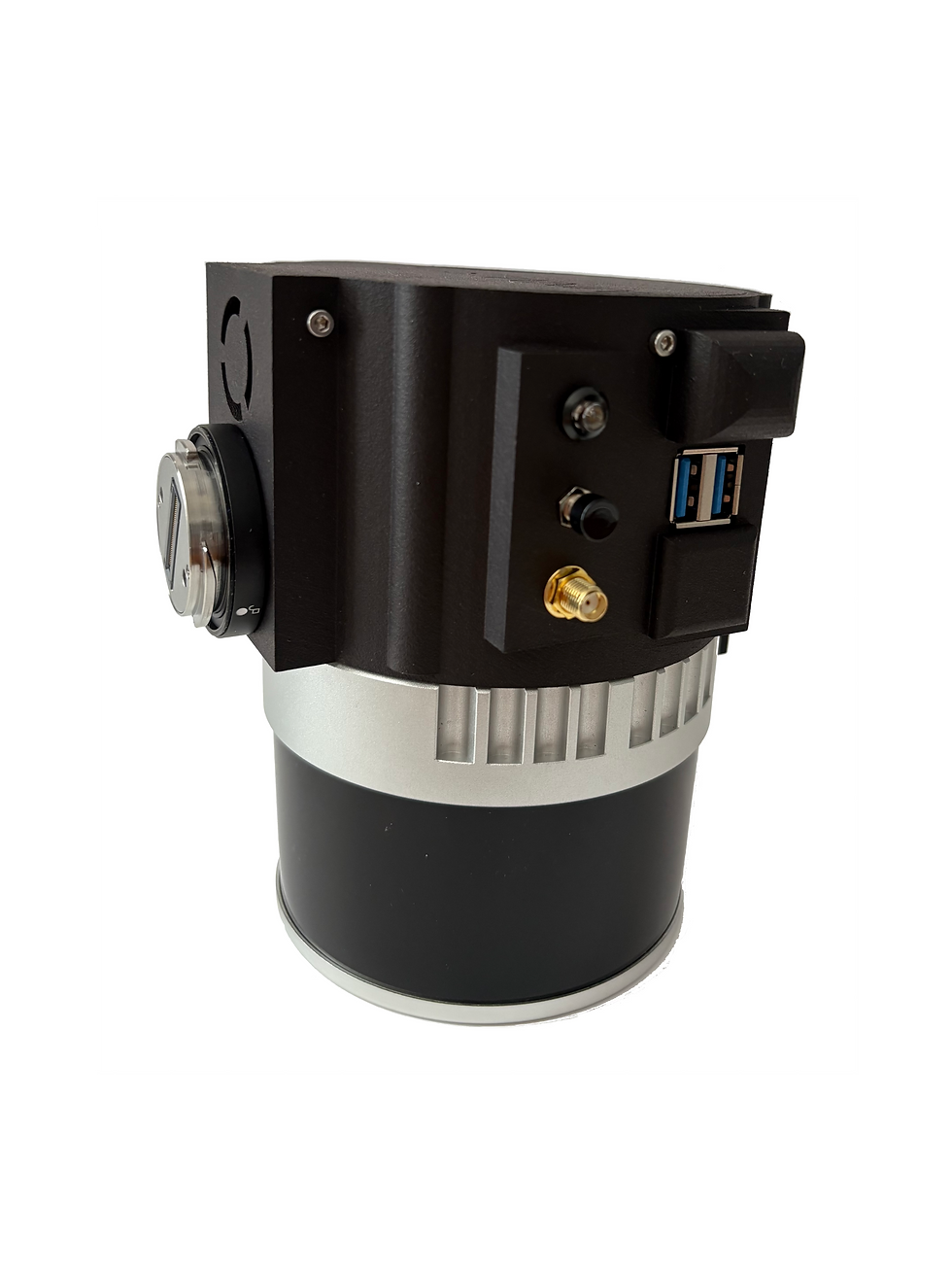

The Mad Nadir Mapping Lidar System 2π-X (MNMLS-2πX) is a lightweight (~1100 grams) and affordable UAV lidar mapping solution based on the Hesai XT32 laser head. The MNMLS-2πX contains a tactical grade inertial measurement unit (IMU) coupled with a multi-frequency GNSS receiver. Combined, these two components make up the highly accurate inertial navigation system (INS). The system uses an XT32 multi-return lidar scanner capable of recording single or double returns. MNMLS-2πX allows for push-button data logging but also contains a web-app interface for system checks, IMU calibration, data logging, etc. MNMLS-2πX comes standard with a skyport mount (power only), but can be mounted on any UAV (VTOL, fixed-wing, multi-rotor) with other mounting systems (e.g., dovetail, gremsy) or custom mounts All MNMLS-2πX purchases include a perpetual processing license for the Mad Nadir Mapping Lidar Processor (MNMLP) software. The MNMLP software is easy to use and includes a custom MNMLP lever arm/boresight tool, contains a BayesMap StripAlign function, uses PPK trajectory processing, allows for field-based processing, does not require an active internet connection (except StripAlign), contains no hidden post-processing steps, employs multi-core processing techniques, consumes low amounts of RAM, requires zero license fees, and includes free software updates. The MNMLP seamlessly ingests the raw MNMLS-2πX data and outputs a georeferenced compressed .las file (.laz) that can be brought in to any lidar post-processing software. Georeferenced point cloud outputs from the MNMLS-2πX are comparable to other entry-level systems on the market, but at a much lower price point.
​
The purchase of this system includes the MNMLS-2πX hardware, the UAV GNSS antenna and mount, and the MNMLP software (including a perpetual license). See the full specifications below for more information. MNMLS-2πX is an all-inclusive and turn-key system that is ready to acquire high-quality data right out of the box!
​
MNMLS-2πX units are designed and assembled in the USA. Mad Nadir Mapping ships globally but note that Mad Nadir Mapping does not cover customs or import fees. Mad Nadir Mapping is happy to arrange custom shipping solutions and is open to regional wholesaling. Contact us to discuss these options.
